Skeletal / Container Trailer

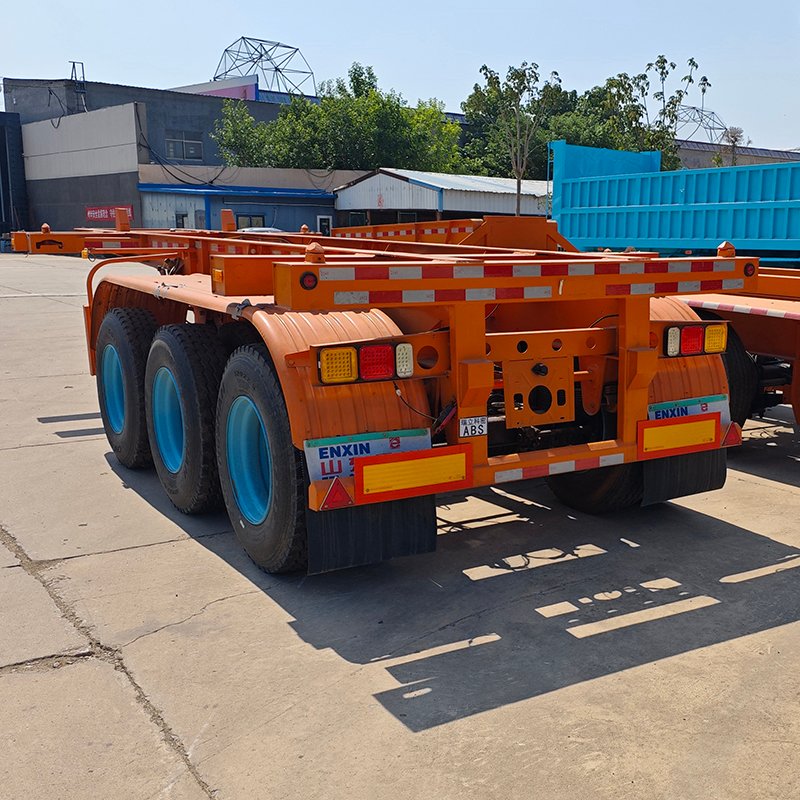

3 Axle Skeleton Container Semi Trailer 40ft

Skeletal chassis for 20ft, 40ft and 45ft containers, built on a 500 mm Q345 I-beam welded with automatic submerged arc processes.

Highlights

  • 500 mm Q345 I-beam welded by automatic submerged arc
  • Takes 20ft, 40ft and 45ft containers
  • Two-speed 28 t heavy-duty landing gear
  • WABCO RE6 relay valve and 40 L air tanks, ABS optional
  • 3 or 4 axle configurations, FUWA or BPW axle sets

Description

A skeleton trailer exists to carry containers with as little dead weight as possible, so the frame is everything. On this chassis the main beam is a heavy-duty I-beam in Q345 high-tensile steel, welded with automatic submerged arc processes, with an 18 mm x 140 mm top flange, a 14 mm middle flange and a 20 mm x 140 mm bottom flange at a 500 mm section height.

The deck is 8 mm checkered plate, and the trailer accepts 20ft, 40ft and 45ft containers. Axle sets can be Fuhua, Fengbao, FUWA or BPW, in three or four axle configurations, on mechanical leaf spring suspension with air suspension available on request.

Braking uses a WABCO RE6 relay valve with T30/30 spring brake chambers and 40 L air tanks, and ABS is optional. Landing gear is a two-speed heavy-duty 28 t unit, and the unit ships with a tool box, spare tyre carrier, crank and shaft head wrench.

If you run a container fleet, tell us the box sizes and the typical gross weight and we will confirm the beam section and axle rating for your lanes.

Specifications

Overall length 12,500 mm
Overall size 12,500 x 2,550 x 1,500 mm (customisable)
Loading capacity 30 t - 100 t, as configured
Container sizes 20 ft / 40 ft / 45 ft
Main beam Heavy-duty I-beam, Q345 high-tensile steel, automatic submerged arc welded
Main beam section Top flange 18 mm x 140 mm, middle 14 mm, bottom 20 mm x 140 mm, 500 mm height
Deck 8 mm checkered plate
Axle 3 axles - Fuhua, Fengbao, FUWA or BPW (4 axles available)
Suspension Mechanical leaf spring (air suspension on request)
Leaf spring 10 pcs x 90 x 13 mm
Tyre 12R22.5, 12 pcs
Wheel rim 9.0-22.5, 12 pcs
King pin 2 in (50 mm) or 3.5 in (90 mm), bolt-in or welded
Landing gear Two-speed heavy duty, 28 t
Braking system WABCO RE6 relay valve, T30/30 spring brake chambers, 40 L air tanks
ABS Optional
Painting Shot blasting, 1 anticorrosive primer coat, 2 top coats
Accessories Tool box, spare tyre carrier, crank, shaft head wrench

Questions about this model

We run our own factory alongside the trading operation. Many customers reorder, and you are welcome to visit the plant at any time.

Every unit is tested before it leaves the factory, and product quality is guaranteed at shipment.

Generally 5-10 days if the goods are in stock, or 15-20 days if they are not.

About 10 days for one set and about 25 days for 10 sets or more.

T/T, Western Union and PayPal.

20 ft, 40 ft and 45 ft containers, on three or four axle configurations.

  • Quotation within 2 working hours
  • Production 15–30 days after order confirmation
  • Spare parts and technical support after the sale
