Car Carrier Trailer

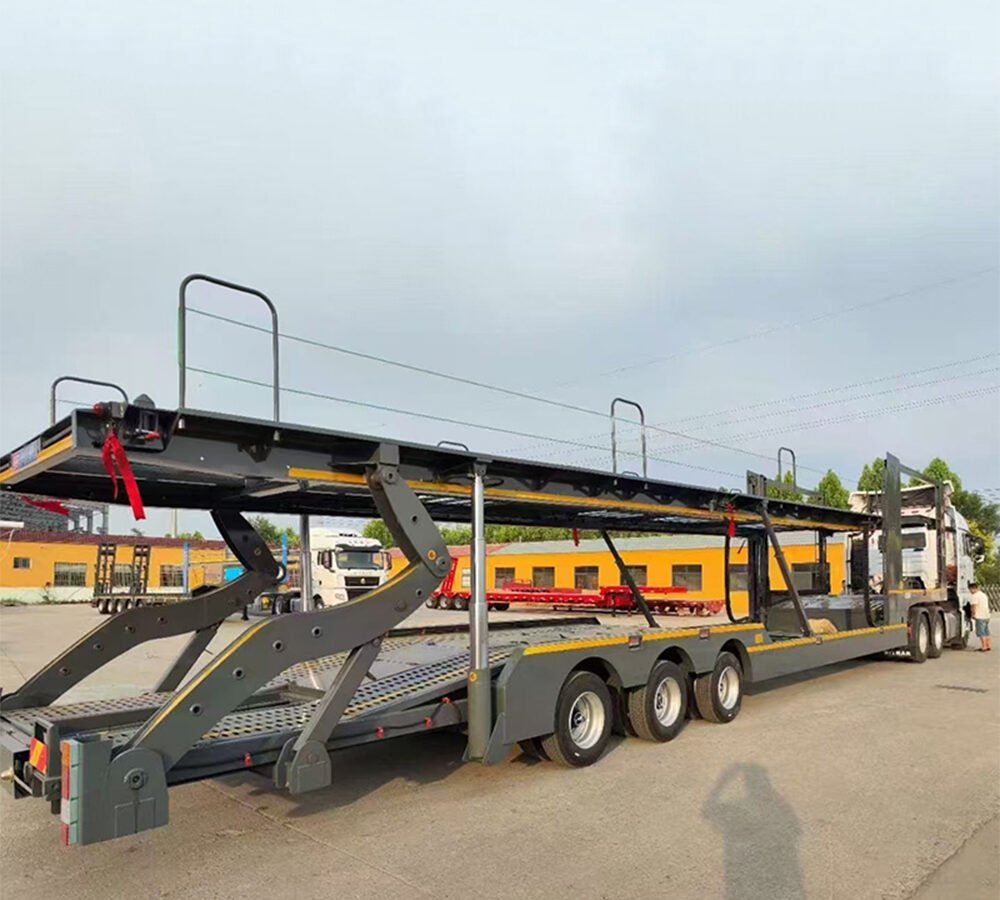

Car Carrier Semi Trailer for 7-10 Cars with 2, 3 or 4 Axles

Double-deck car transporter with a hydraulic lifting upper platform, carrying seven to ten passenger cars on two, three or four axles.

Highlights

  • Carries 7-10 passenger cars on a double-deck platform
  • Hydraulic lifting upper platform for easy loading
  • Skeleton, semi-closed or fully closed bodies
  • FUWA or BPW axles, 2, 3 or 4 axle configurations
  • Automatic submerged arc welding with shot blasted finish

Description

This car carrier semi-trailer is a double-deck vehicle transporter for moving passenger cars by road. The upper loading platform lifts hydraulically so vehicles can be driven on at both levels, and the trailer carries seven to ten cars depending on their size.

It has been used to load Volkswagen, Audi, Honda, Hyundai, Toyota and Buick vehicles, among others. The frame is welded with automatic submerged arc and carbon dioxide gas shielded welding, then shot blasted to relieve welding stress and improve paint adhesion.

The body can be built as a skeleton, semi-closed or fully closed unit, and the semi-closed version adds tarpaulin on both sides to protect the cars and allow other cargo on the return leg. Length, axle count and body type are all made to order: two, three or four axles with FUWA or BPW axle sets, mechanical or air suspension, and an 11.00R22.5 or 12R22.5 tyre choice.

Tell us the vehicle models, how many per trip and your route and we will confirm the platform layout and axle configuration.

Specifications

Overall length 15,180 mm
Overall size 15,180 x 2,700 x 3,800 mm
Car capacity 7 - 10 cars
Loading capacity 20,000 - 25,000 kg
Main frame 350 mm height I-beam, top flange 10 mm, middle floor 3 mm
Axle 2, 3 or 4 axles - FUWA or BPW
Suspension Mechanical or air suspension
Traction pin JOST 3.5 in (90 mm)
Landing gear JOST 25 t
Tyre 11.00R22.5 (12R22.5 and 315/385 also available)
Rim 8.00-20 / 8.5-20 / 8.5-22.5 / 9.0-22.5
Braking system Dual line air brake, T30/30 spring brake chambers, four lifting hydro-cylinders
Electrical system POWAY 24V 7-pin ISO1185 socket, ISO tail lamps with turn signal, brake light and reflector, side lamps, 6-core cable
Painting Shot blasting, 1 anticorrosive primer coat, 2 finish urethane coats
Spare wheel carrier One set with riser

Questions about this model

Seven to ten cars of different sizes on a double-deck platform. The upper platform lifts to make loading easier.

Volkswagen, Audi, Honda, Hyundai, Toyota and Buick vehicles are among those already carried.

Yes. The trailer is built to different lengths, and in skeleton, semi-closed or fully closed body styles.

Two, three or four axles, with FUWA or BPW axle sets.

Yes - mechanical or air suspension, according to your route and load.

Send the vehicle models, how many per trip and your destination port, and we will confirm the platform layout and axle configuration.

  • Quotation within 2 working hours
  • Production 15–30 days after order confirmation
  • Spare parts and technical support after the sale
