Dump / Tipper Trailer

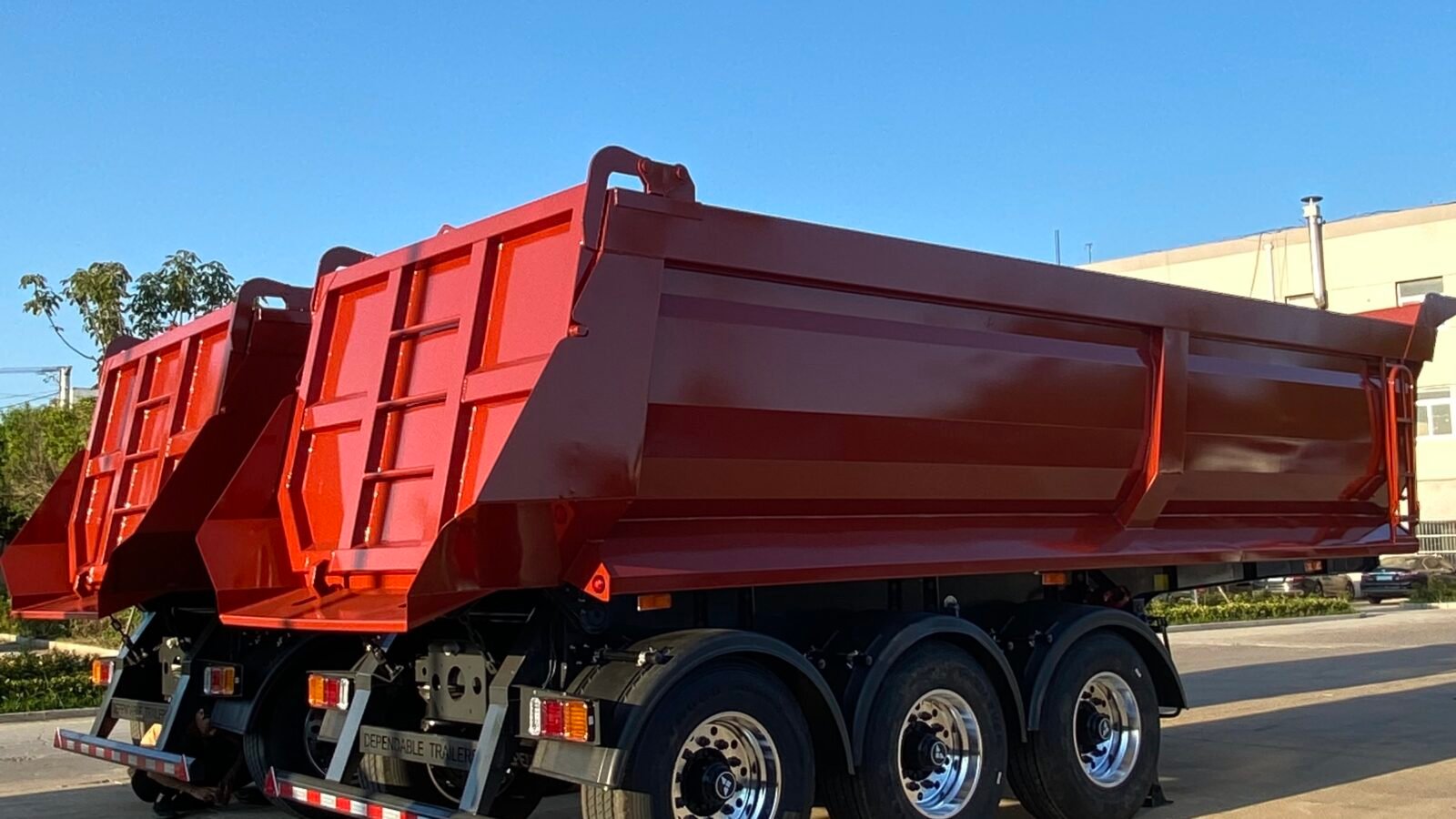

3 Axle Rear Dump Semi Trailer 25-35 CBM for Mining and Bulk Cargo

Rear-tipping semi-trailer with a 25-35 CBM body, Q345 main beam and fast hydraulic unloading for sand, gravel, ore and construction spoil.

Highlights

  • 25-35 CBM tipping body sized to your material
  • Q345 I-beam welded by automatic submerged arc
  • Fast hydraulic unloading to cut cycle time and labour cost
  • Electric tarpaulin fitted as standard equipment
  • WABCO RE6 relay valve, 40 L air tanks, ABS optional

Description

This rear dump semi-trailer is built for bulk material that has to be tipped and gone: sand, gravel, ore, coal and construction spoil. The body takes 25 to 35 CBM depending on the size you specify, and the hydraulic system lifts fast to keep cycle times down and cut labour cost per tonne.

The chassis uses a Q345 high-tensile I-beam welded by automatic submerged arc processes, with a 12 mm x 140 mm upper flange, an 8 mm middle flange and a 12 mm x 140 mm lower flange at a 500 mm section height. The body floor and side walls follow the same heavy-duty logic, and the body size and load rating are tailored to what you actually haul.

Two, three or four axles are available, with Fengbao, FUWA, BPW or ZY axle sets, mechanical or air suspension, 12R22.5 tyres and a two-speed 28 t landing gear. Braking is a WABCO RE6 relay valve with T30/30 spring brake chambers and 40 L air tanks, with ABS optional. An electric tarpaulin is fitted.

Tell us the material, the density and the daily tonnage and we will size the body and the hydraulic system to match.

Specifications

Overall length 10,500 mm
Overall size 10,500 x 2,600 x 3,700 mm (customisable)
Body volume 25 - 35 CBM
Loading capacity 30 t - 100 t, as configured
Main beam Q345 high-tensile I-beam, automatic submerged arc welded
Main beam section Upper flange 12 mm x 140 mm, middle 8 mm, lower flange 12 mm x 140 mm, 500 mm height
Body floor 6 mm checkered plate
Body side height 1,600 mm high, 6 mm thick
Axle 2, 3 or 4 axles - Fengbao, FUWA, BPW or ZY
Suspension Mechanical or air suspension
Leaf spring 10 pcs x 90 x 13 mm
Tyre 12R22.5, 12 pcs
Wheel rim 9.0-22.5, 12 pcs
King pin 2 in (50 mm) or 3.5 in (90 mm), bolt-in or welded
Landing gear Two-speed heavy duty, 28 t
Tarpaulin Electric tarpaulin
Braking system WABCO RE6 relay valve, T30/30 spring brake chambers, 40 L air tanks
ABS Optional
Painting Shot blasting, 1 anticorrosive primer coat, 2 top coats
Accessories Tool box, spare tyre carrier, crank, shaft head wrench

Questions about this model

Between 25 and 35 CBM depending on the body size specified. Tell us the material and its density and we will size the body for your tonnage.

Sand, gravel, ore, coal, construction spoil and similar bulk materials. It is used across construction, mining and agriculture.

Two, three or four axles, with Fengbao, FUWA, BPW or ZY axle sets.

Yes. The cargo box size and load capacity are tailored to the transport job, and every unit is brand new.

About 15 days for one set and about 35 days for 10 sets or more.

Fengbao, FUWA, BPW and ZY axle sets are all available.

  • Quotation within 2 working hours
  • Production 15–30 days after order confirmation
  • Spare parts and technical support after the sale
