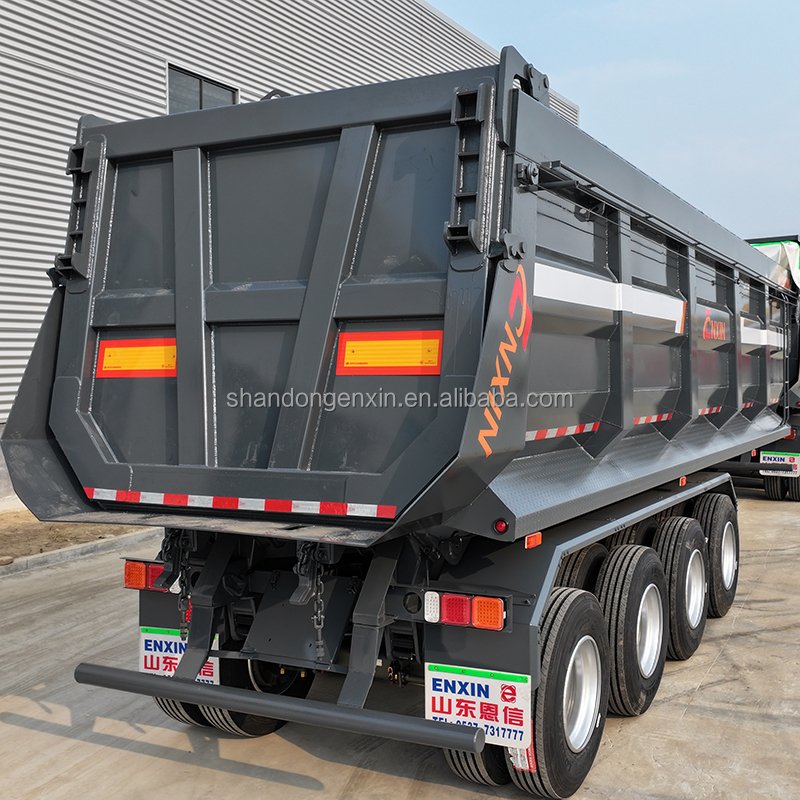

4 Axle U-Shape Rear Dump Trailer 80-100 Ton for Mining and Rock

Four-axle U-shape tipper for rock and ore haulage up to 100 t, with a HYVA hydraulic lifting system and a Q345B main beam welded by automatic submerged arc.

Highlights

  • Rated to 100 t on a Q345B main beam
  • 16 mm upper plate, 10 mm web and 18 mm lower plate
  • Genuine HYVA hydraulic lifting system
  • U-shape body for clean discharge of wet or sticky material
  • 2, 3 or 4 axles with FUWA or BPW axle sets

Description

This four-axle U-shape rear dump trailer is aimed at the heaviest end of bulk haulage – rock, ore and overburden in mining and quarry work – where the frame has to survive extreme loads without deforming. The main beam is Q345B high-tensile steel, formed by automatic submerged arc welding, with a 16 mm upper plate, a 10 mm middle web and an 18 mm lower plate for vertical stiffness.

The U-shape body empties more cleanly than a flat-sided box, and the tipper runs a genuine HYVA hydraulic lifting system for faster lifting speed and a higher safety margin, with hydraulic spares available through the global HYVA network.

Two, three or four axle configurations are offered with Fuhua, Fengbao, FUWA or BPW axle sets, plus mechanical or air suspension, 12R22.5 tyres, a 2 in or 3.5 in king pin and an electric tarpaulin. The cargo box size and load rating are tailored to your site.

Send us the material, target payload per trip and the haul road profile, and we will confirm the plate thickness and hydraulic specification.

Specifications

Overall length 10,500 mm
Overall size 10,500 x 2,600 x 3,700 mm (customisable)
Body U-shape tipper body
Loading capacity 80 - 100 t
Main beam Q345B high-tensile steel, automatic submerged arc welded
Main beam section Upper plate 16 mm, middle web 10 mm, lower plate 18 mm
Hydraulic system HYVA hydraulic lifting system
Axle 2, 3 or 4 axles - Fuhua, Fengbao, FUWA or BPW
Suspension Mechanical or air suspension
Leaf spring 10 pcs x 90 x 13 mm
Tyre 12R22.5, 12 pcs (Chengshan tubeless)
King pin 2 in (50 mm) or 3.5 in (90 mm), bolt-in or welded
Landing gear Standard 28 t
Tarpaulin Electric tarpaulin
Painting Shot blasting, 1 anticorrosive primer coat, 2 top coats
Accessories Tool box, spare tyre carrier, crank, shaft head wrench

Questions about this model

We run our own factory alongside the trading operation. Many customers reorder, and you are welcome to visit the plant at any time.

Every unit is strictly tested before it leaves the factory, and quality is guaranteed at shipment.

Generally 5-10 days if the goods are in stock, or 15-20 days if they are not. This model runs about 15 days for one set and 35 days for 10 sets or more.

Cutting-edge manufacturing capability with a strong focus on quality, and tailor-made solutions for the global market.

T/T, Western Union and PayPal.

Consistent product quality and competitive pricing to protect our customers' interests, and long-term cooperation with customers wherever they come from.

  • Quotation within 2 working hours
  • Production 15–30 days after order confirmation
  • Spare parts and technical support after the sale
